Product name | The vertical axis wind turbine |
Started wind speed (m/s) | 1.3 m/s |
Cut-in wind speed (m/s) | 2.5 m/s |
Rated Wind speed (m/s) | 11 m/s |
Safe wind speed (m/s) | Max wind speed:≤40m/s, The instantaneous maximum wind speed≤45m/s |
Rated voltage(DC) | 24V |
Rated power(W) | 400W |
Max power(W) | 450W |
Rotor Diameter of Blades(m) | 0.52 |
Blades Height(m) | 1.05(generator excluded) 1.17 (generator and flange included) |
Blades quantity | 2 pcs |
Blade material | glass/basalt |
Generator | Three phase permanent magnet suspension motor |
Control System | Electromagnet |
Mount Height(m) | 7~12m (9m) |
Generator protection grade | IP54 |
Work environment temperature | VAWT -25~+45℃ controller -10~+45℃ Inverter 0~+40℃ |
Work environment humidity
| VAWT ≤90% Controller and inverter≤80% |
Altitude | ≤4500m |
Product assembly weight (Kg) | <18Kg |
Overspeed protection | Electromagnetic brake |
Overload protection | Electromagnetic brake and the unloading unit |

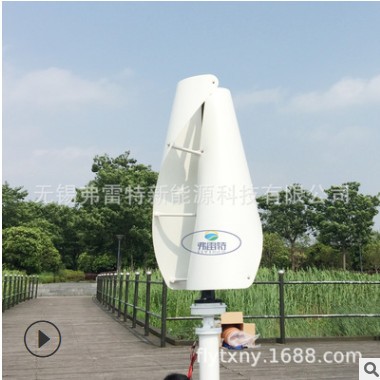

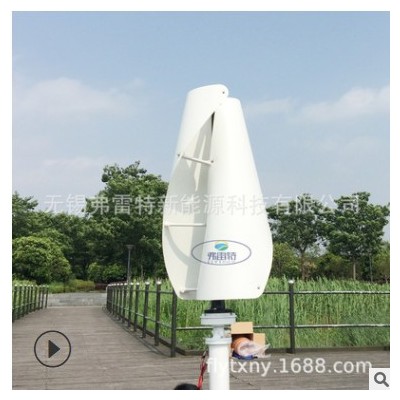

家用客户安装图片：
通过认证
